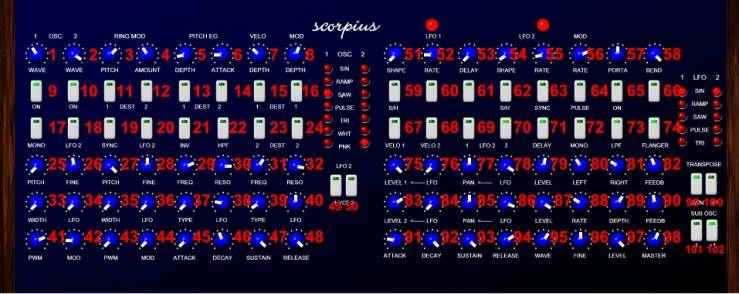

User Reference scorpius



**NOTE:

The scorpius synth was designed to be used with 2 Behringer BCR 2000 units. Therefore the layout may be a little strange,

and not all functions are clearly labeled. But after some experimenting and checking this reference, everything should be clear.



For help or questions please contact me.





1

Wave osc 1

Waveform type osc 1

Sine, ramp, saw, tri, pulse, white and pink noise

2

Wave osc 2

Waveform type osc 2

Sine, ramp, saw, tri, pulse, white and pink noise

3

Ring mod Pitch

Ring modulator pitch



4

Ring mod Amount

Amount of the ring modulator



5

Pitch eg Depth

Pitch Envelope Generator Depth



6

Pitch eg Attack

Attack time of the Pitch EG



7

Velo Depth

Velocity depth of  VCF 1 / 2



8

Mod Depth

Modulation depth of VCF 1 / 2

Modulation wheel



9

On

Osc 1 on / off



10

On

Osc 2 on / off



11

Dest 1

Ring modulator -> osc 1



12

Dest 2

Ring modulator -> osc 2



13

Dest 1

Pitch EG -> osc 1



14

Dest 2

Pitch EG -> osc 2



15

Dest 1

Velocity -> vcf 1



16

Dest 1

Modulation -> vcf 1





17

Mono

Monophonic mode



18

LFO 2

LFO 2 -> pitch osc 1

When not activated LFO 1 is send to pitch osc 1

19

Sync

Osc 2 is synchronized to osc1

Phase synchronization

20

LFO 2

LFO 2 -> pitch osc 2

When not activated LFO 1 is send to pitch osc 2

21

Inv

Inverse pitch Envelope

When activated pitch envelope is reversed

22

HPF

High pass filter for VCF 1



23

Dest 2

Velocity -> vcf 2



24

Dest 2

Modulation -> vcf 2





25

Pitch

Pitch of vco 1



26

Fine

Fine tuning of vco 1



27

Pitch

Pitch of vco 2



28

Fine

Fine tuning of vco 2



29

Freq

Frequency of vcf 1

Osc 1 -> VCF 1

30

Reso

Resonance of vcf 1



31

Freq

Frequency of vcf 2

Osc 2 -> VCF 2

32

Reso

Resonance of vcf 2





33

Width

Pulse width osc 1

When pulse is selected

34

LFO

LFO depth osc 1



35

Width

Pulse width osc 2

When pulse is selected

36

LFO

LFO depth osc 2



37

Type

Filter type vcf 1

HP, LP, BP, B Reject

38

LFO

LFO depth vcf 1



39

Type

Filter type vcf 2

HP, LP, BP, B Reject

40

LFO

LFO depth vcf 2





41

PWM

Pulse width modulation osc 1

Modulation by LFO 1 or 2 (depending on switch 18)

42

Mod

Modulation depth osc 1

Modulation wheel

43

PWM

Pulse width modulation osc 2

Modulation by LFO 1 or 2 (depending on switch 20)

44

Mod

Modulation depth osc 2

Modulation wheel

45

Attack

Attack time for vcf 1 + 2



46

Decay

Decay time for vcf 1 + 2



47

Sustain

Sustain level for vcf 1+ 2



48

Release

Release time for vcf 1+ 2





49

LFO 2 vcf 1

LFO 2 -> vcf 1

When not activated LFO 1 is send to vcf 1

50

LFO 2 vcf 2

LFO 2 -> vcf 2

When not activated LFO 1 is send to vcf 2







51

LFO 1 shape

Shape of LFO 1

Sine, ramp, saw, tri, pulse

52

LFO 1 Rate

Speed of LFO 1



53

LFO 1 Delay

Fade-in time of LFO 1



54

LFO 2 Shape

Shape of LFO 2



55

LFO 2 rate

Speed of LFO 2



56

Mod Rate

Modulation Speed

Modulation Wheel

57

Porta

Portamento time

Legato only

58

Bend

Pitch bend range

0-12 semitones



59

S/H

Sample and Hold LFO 1



60

Host

LFO 1 host sync on



61

Beat

LFO 1 host sync beat

When not activated sync is set to Bar

62

S/H

Sample and hold LFO 2



63

Sync

LFO 2 speed synchronised to LFO 1

NOT fase sync! Only rate

64

Pulse

Modulation shape is pulse

When not activated shape is sine

65

On

Portamento on



66

-

-

-



67

Velo 1

Velocity vca 1 on



68

Velo 2

Velocity vca 2 on



69

LFO 2 – 1

LFO 2 -> vca 1

When not activated LFO 1 is send to vca 1

70

LFO 2 – 2

LFO 2 -> vca 2

When not activated LFO 1 is send to vca 2

71

Delay

Delay effect on / off



72

Mono

Mono delay effect

Left delay time is active

73

LPF

Low pass filter for delay effect



74

Flanger

Flanger effect on / off





75

Level

Level vca 1



76

ß LFO

LFO -> vca 1 level



77

Pan

Panorama vca 1



78

ß LFO

LFO -> pan vca 1



79

Level

Delay send level



80

Left

Left delay time

Or Left + Right delay time when mono

81

Right

Right delay time

Not active when mono

82

Feedback

Feedback amount of delay





83

Level

Level vca 2



84

ß LFO

LFO -> vca 2 level



85

Pan

Panorama vca 2



86

ß LFO

LFO -> pan vca 2



87

Level

Flanger level



88

Rate

Speed of the flanger effect



89

Depth

Depth of the flanger effect



90

Feedback

Feedback of the flanger effect





91

Attack

Attack time for vca 1+ 2



92

Decay

Decay time for vca 1+ 2



93

Sustain

Sustain level for vca 1+ 2



94

Release

Release time for vca 1+ 2



95

Wave

Waveform sub osc

Sine, ramp, saw, tri, pulse

96

Fine

Fine tuning of sub osc

Pitch of  osc 1 is used to set the pitch of sub osc

97

Level

Level of sub osc

Sub osc -> vcf 1

98

Master

Master output level





99

Transpose dwn**

Transposes the pitch 1 octave down



100

Transpose up**

Transposes the pitch 1 octave up





**NOTE: When up and down are both selected transpose = 0

             When up and down are both NOT selected transpose = 0



101

Sub osc -1**

Transposes the pitch of sub osc 1 octave down



102

Sub osc +1**

Transposes the pitch of sub osc 1 octave up





**NOTE: When -1 and +1 are both selected transpose = 0

             When -1 and +1 are both NOT selected transpose = 0
